Kubernetes

Collect metrics from your Kubernetes cluster — node resource usage, pod CPU/memory, deployment health, persistent volume status, and more.

Pattern: kube-state-metrics + kubelet cAdvisor → Prometheus scrape → xScaler remote_write

---

Dashboards

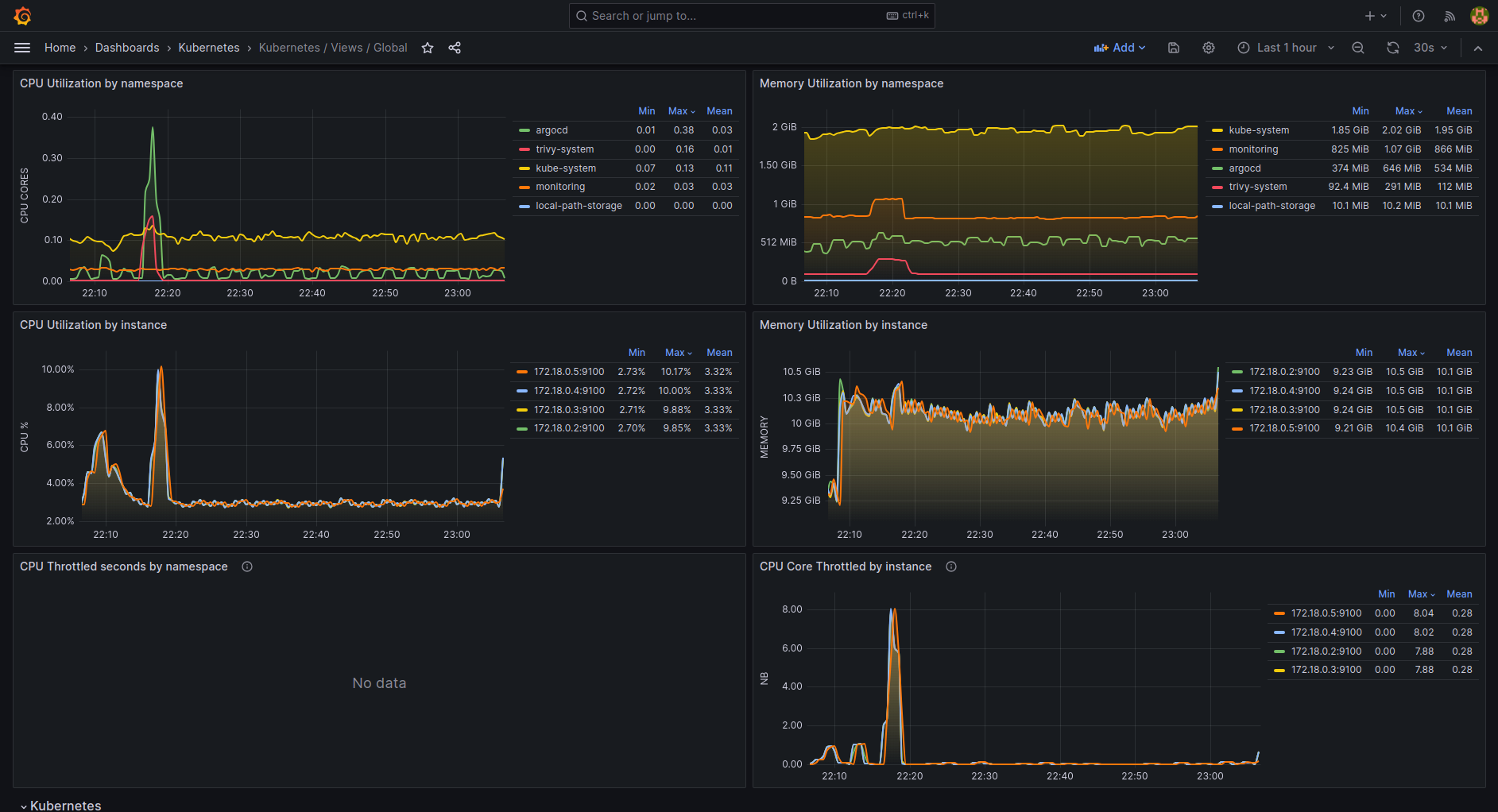

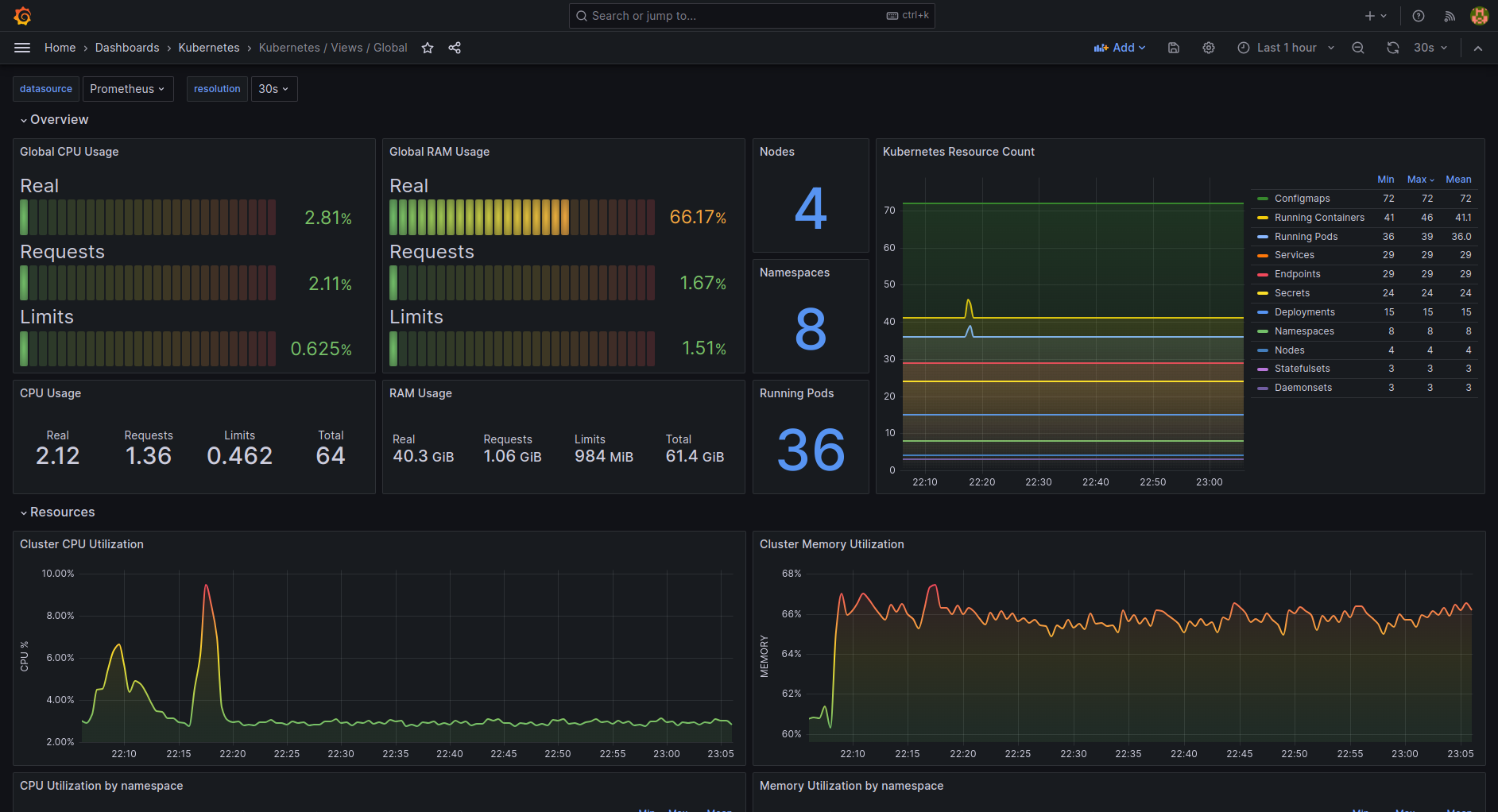

Overview

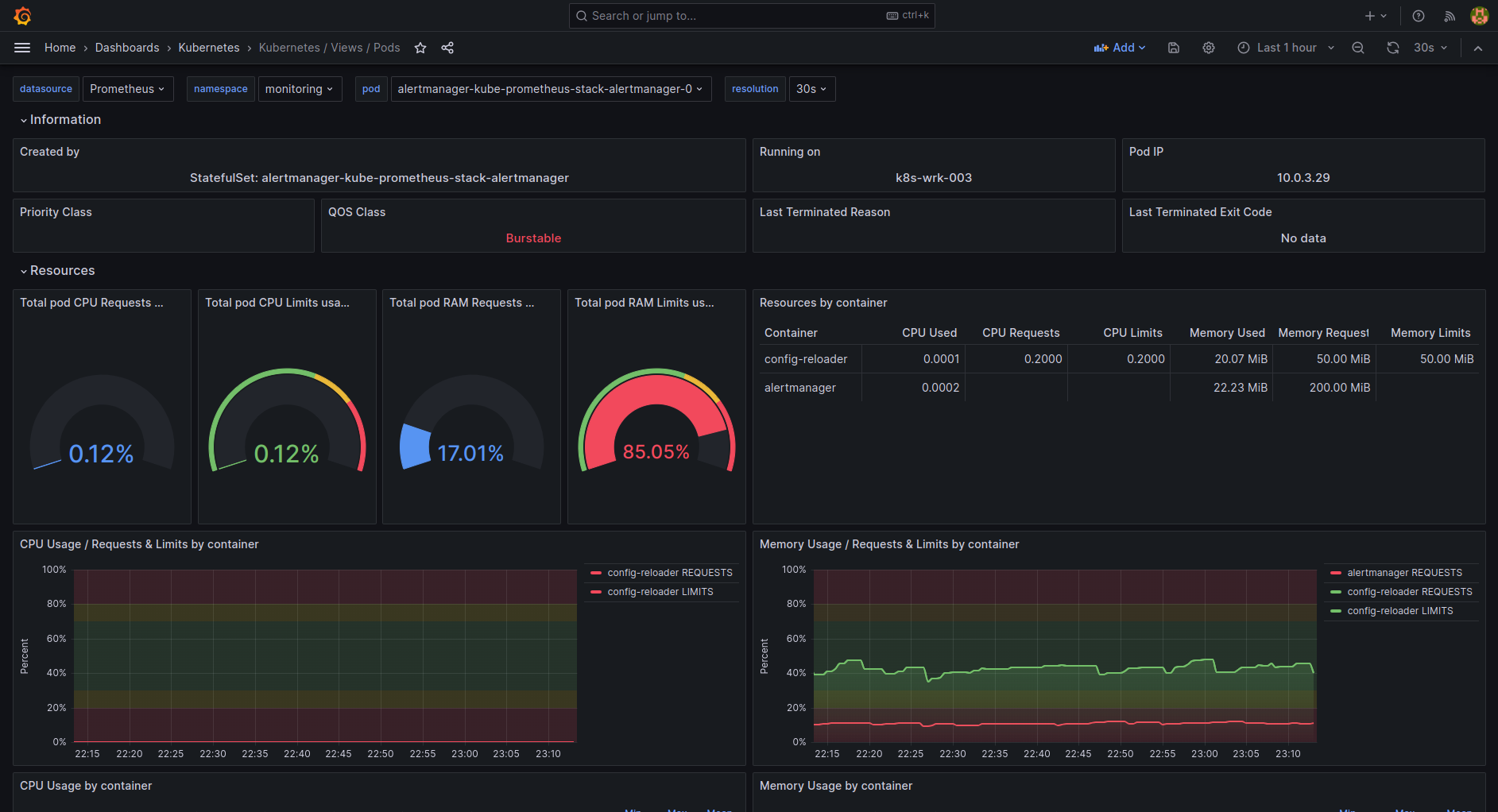

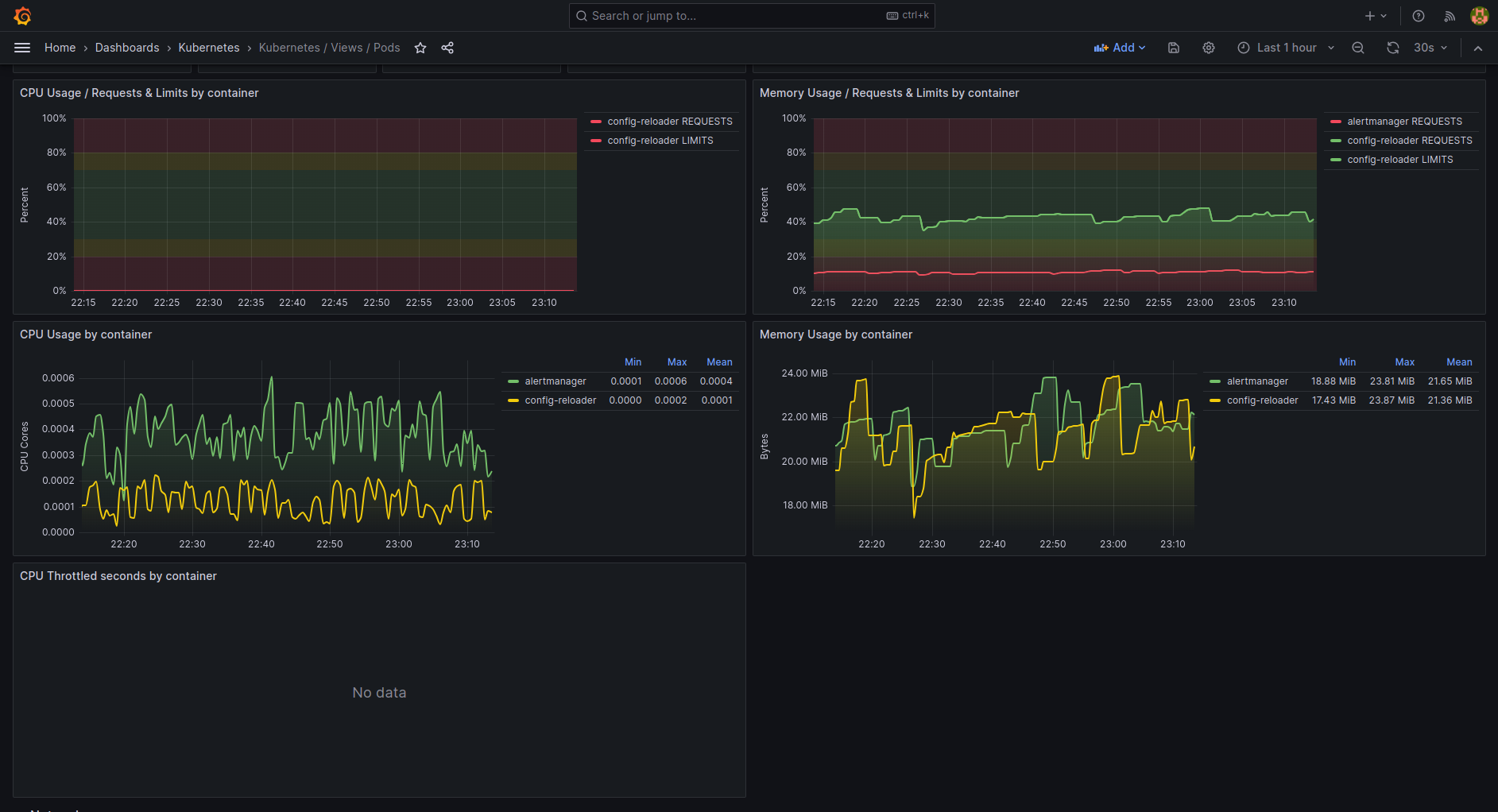

Pods

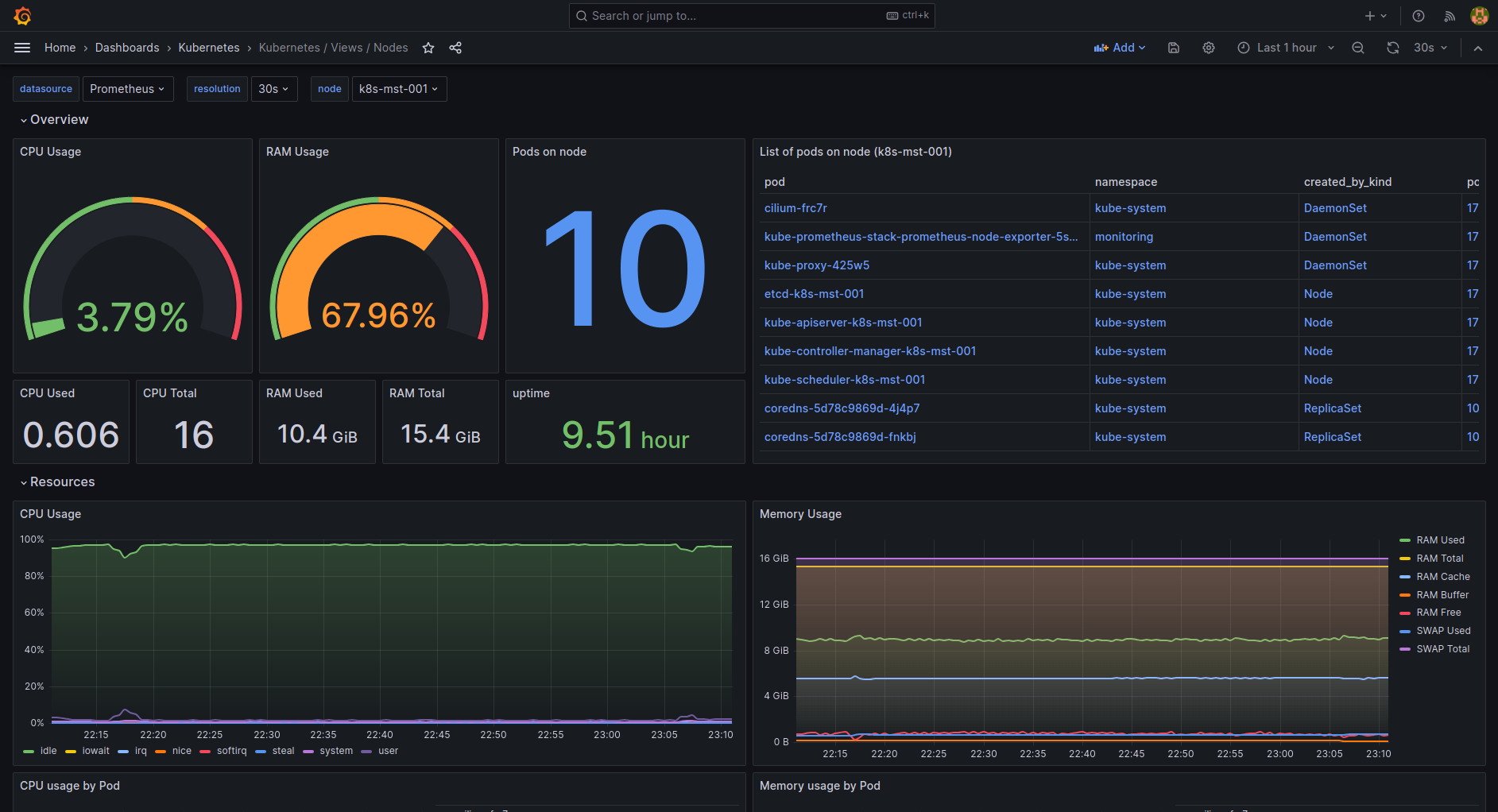

Nodes

---

Prerequisites

• Kubernetes cluster (any version ≥ 1.21)
• kubectl access
• Prometheus or Grafana Alloy deployed in the cluster
• xScaler tenant credentials

---

Step 1 — Deploy kube-state-metrics

kube-state-metrics exposes Kubernetes object state as Prometheus metrics.

kubectl apply -f https://github.com/kubernetes/kube-state-metrics/releases/latest/download/kube-state-metrics.yaml

Verify:

kubectl get pods -n kube-system -l app.kubernetes.io/name=kube-state-metrics

---

Step 2 — Scrape and forward to xScaler

Option A — Prometheus (in-cluster)

Add these scrape jobs to your Prometheus config or prometheus-operator ServiceMonitor:

scrape_configs:
  # kube-state-metrics — Kubernetes object state
  - job_name: kube-state-metrics
    static_configs:
      - targets: ['kube-state-metrics.kube-system.svc.cluster.local:8080']

  # kubelet cAdvisor — container resource usage
  - job_name: kubelet
    scheme: https
    tls_config:
      insecure_skip_verify: true
    bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
    kubernetes_sd_configs:
      - role: node
    relabel_configs:
      - action: labelmap
        regex: __meta_kubernetes_node_label_(.+)
      - target_label: __address__
        replacement: kubernetes.default.svc:443
      - source_labels: [__meta_kubernetes_node_name]
        target_label: __metrics_path__
        replacement: /api/v1/nodes/${1}/proxy/metrics/cadvisor

remote_write:
  - url: https://euw1-01.m.xscalerlabs.com/api/v1/push
    authorization:
      credentials: <token>
    headers:
      X-Scope-OrgID: <tenant-id>

Option B — Grafana Alloy (in-cluster)

// Discover all Kubernetes pods with prometheus.io/scrape annotation
discovery.kubernetes "pods" {
  role = "pod"
}

discovery.relabel "annotated_pods" {
  targets = discovery.kubernetes.pods.targets
  rule {
    source_labels = ["__meta_kubernetes_pod_annotation_prometheus_io_scrape"]
    action        = "keep"
    regex         = "true"
  }
}

prometheus.scrape "kubernetes" {
  targets    = discovery.relabel.annotated_pods.output
  forward_to = [prometheus.remote_write.xscaler.receiver]
}

prometheus.remote_write "xscaler" {
  endpoint {
    url = "https://euw1-01.m.xscalerlabs.com/api/v1/push"
    authorization {
      type        = "Bearer"
      credentials = env("XSCALER_TOKEN")
    }
    headers = { "X-Scope-OrgID" = env("XSCALER_TENANT_ID") }
  }
}

---

Option C — OpenTelemetry Collector

receivers:
  k8s_cluster:
    collection_interval: 15s
    node_conditions_to_report: [Ready, MemoryPressure, DiskPressure]
    allocatable_types_to_report: [cpu, memory, storage]
  kubeletstats:
    collection_interval: 15s
    auth_type: serviceAccount
    endpoint: https://${K8S_NODE_NAME}:10250
    insecure_skip_verify: true
    metric_groups: [node, pod, container, volume]

processors:
  memory_limiter:
    check_interval: 1s
    limit_mib: 512
  batch:
    timeout: 10s
  k8sattributes:
    passthrough: false

exporters:
  otlphttp/xscaler:
    endpoint: https://euw1-01.m.xscalerlabs.com
    headers:
      Authorization: "Bearer <token>"
      X-Scope-OrgID: "<tenant-id>"

service:
  pipelines:
    metrics:
      receivers:  [k8s_cluster, kubeletstats]
      processors: [memory_limiter, k8sattributes, batch]
      exporters:  [otlphttp/xscaler]

---

Logs

Collect all container stdout/stderr across the cluster, enriched with pod, namespace, and node labels. Add the following to your Alloy config (run on each node or deploy as a DaemonSet):

discovery.kubernetes "kubernetes_pods" {
  role = "pod"
}

discovery.relabel "kubernetes_logs" {
  targets = discovery.kubernetes.kubernetes_pods.targets
  rule {
    source_labels = ["__meta_kubernetes_namespace"]
    target_label  = "namespace"
  }
  rule {
    source_labels = ["__meta_kubernetes_pod_name"]
    target_label  = "pod"
  }
  rule {
    source_labels = ["__meta_kubernetes_pod_container_name"]
    target_label  = "container"
  }
  rule {
    replacement  = "integrations/kubernetes"
    target_label = "job"
  }
  rule {
    source_labels = ["__meta_kubernetes_pod_uid", "__meta_kubernetes_pod_container_name"]
    separator     = "/"
    target_label  = "__path__"
    replacement   = "/var/log/pods/*$1/*.log"
  }
}

loki.source.file "kubernetes_logs" {
  targets    = discovery.relabel.kubernetes_logs.output
  forward_to = [loki.write.xscaler.receiver]
}

loki.write "xscaler" {
  endpoint {
    url = "https://euw1-01.l.xscalerlabs.com/api/v1/logs/push"

    http_client_config {
      authorization {
        type        = "Bearer"
        credentials = env("XSCALER_TOKEN")
      }
    }

    headers = { "X-Scope-OrgID" = env("XSCALER_TENANT_ID") }
  }
}

Key metrics

Metric	Description
kube_pod_status_phase	Pod phase (Running, Pending, Failed)
kube_deployment_status_replicas_available	Available replicas per deployment
kube_deployment_status_replicas_unavailable	Unavailable replicas
kube_node_status_condition	Node conditions (Ready, MemoryPressure)
kube_pod_container_resource_requests	Requested CPU/memory per container
kube_pod_container_resource_limits	CPU/memory limits per container
container_cpu_usage_seconds_total	Container CPU usage (cAdvisor)
container_memory_working_set_bytes	Container memory usage (cAdvisor)
kube_persistentvolumeclaim_status_phase	PVC status (Bound, Pending)
kube_horizontalpodautoscaler_status_current_replicas	HPA current replica count

---

Useful PromQL queries

# Pods not in Running state
count by (namespace, pod) (kube_pod_status_phase{phase!="Running"})

# Container CPU usage % of limit
sum(rate(container_cpu_usage_seconds_total[5m])) by (pod, namespace)
/ sum(kube_pod_container_resource_limits{resource="cpu"}) by (pod, namespace)
* 100

# Container memory usage % of limit
sum(container_memory_working_set_bytes) by (pod, namespace)
/ sum(kube_pod_container_resource_limits{resource="memory"}) by (pod, namespace)
* 100

# Deployments with unavailable replicas
kube_deployment_status_replicas_unavailable > 0

# Node not Ready
kube_node_status_condition{condition="Ready", status="true"} == 0
